ZJets Analysis

Muon section

χ²₀ = Nominal χ² in the unfolding

χ²_reg. = χ² for the regularization term in the unfolding

χ²_unf = (Data_unf - Prediction_gen) V^-1_unf (Data_unf - Prediction_gen)

χ²_rec = (Data_reco - Background_reco - Folded Prediction_unf) V^-1_reco (Data_reco - Background_reco - Folded Prediction_unf)

V^-1_unf and V^-1_reco include the data statistical uncertatinties of their respective spaces.

Muon Channel

Variable	Condition	MG_NLO chi2 REC	MG_NLO chi2 UNF	MG_NLO ratio	MG_LO chi2 REC	MG_LO chi2 UNF	MG_LO ratio	GENEVA chi2 REC	GENECA chi2 UNF	GENEVA ratio	dof
ZNGoodJets_Zexc	897056.32	22908.30	22908.30	1.0000	48471.94	48471.94	1.0000	131978.97	131978.97	1.0000	9
FirstJetPt_Zinc1jet	15446.46	14549.79	14545.74	1.0003	32629.33	32008.79	1.0194	24345.74	24325.55	1.0008	16
SecondJetPt_Zinc2jet	2915.02	1952.36	1923.42	1.0150	12442.51	12391.78	1.0041	94904.80	94183.21	1.0077	13
ThirdJetPt_Zinc3jet	660.37	274.67	255.82	1.0737	2928.77	2954.74	0.9912	84042.76	83603.21	1.0053	8
FourthJetPt_Zinc4jet	347.40	759.29	755.73	1.0047	588.62	587.32	1.0022	27990.36	27904.73	1.0031	6
FifthJetPt_Zinc5jet	49.88	638.76	638.24	1.0008	167.15	164.33	1.0172	8096.36	8086.85	1.0012	4
FirstJetAbsRapidity_Zinc1jet	3.61	7274.88	7296.76	0.9970	19274.11	19299.89	0.9987	12265.80	12324.13	0.9953	12
SecondJetAbsRapidity_Zinc2jet	3.35	1311.43	1316.87	0.9959	6144.60	6150.94	0.9990	55865.41	55870.78	0.9999	12
ThirdJetAbsRapidity_Zinc3jet	3.38	223.17	229.23	0.9736	404.32	408.44	0.9899	37756.42	37763.10	0.9998	12
FourthJetAbsRapidity_Zinc4jet	3.96	199.46	202.59	0.9846	68.09	71.16	0.9569	9905.86	9908.20	0.9998	12
FifthJetAbsRapidity_Zinc5jet	3.89	170.75	176.74	0.9661	21.83	27.43	0.7959	2401.63	2402.69	0.9996	12
JetsHT_Zinc1jet	3399.52	8771.46	8682.94	1.0102	30120.99	29229.48	1.0305	51436.95	51862.53	0.9918	16
JetsHT_Zinc2jet	571.24	1467.95	1495.50	0.9816	7940.13	7961.82	0.9973	61056.47	60806.25	1.0041	15

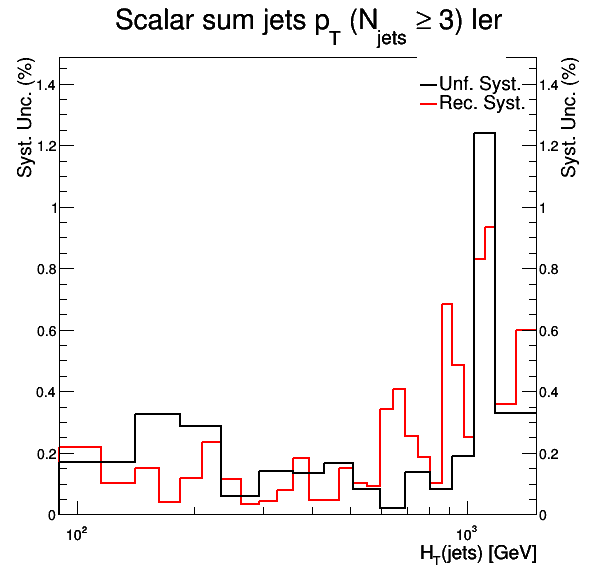

JetsHT_Zinc3jet	105.38	230.48	235.03	0.9806	580.45	591.38	0.9815	37092.15	37034.88	1.0015	14
JetsHT_Zinc4jet	19.01	355.59	358.90	0.9908	172.04	178.32	0.9648	9713.99	9665.85	1.0050	12
JetsHT_Zinc5jet	6.32	190.53	194.11	0.9815	45.98	49.96	0.9205	2345.95	2333.20	1.0055	11
JetsMass_Zinc2jet	261.01	1543.26	1515.41	1.0184	8747.92	8754.86	0.9992	56301.79	56136.86	1.0029	15
ZPt_Zinc0jet	8672.81	80066.55	80292.65	0.9972	92852.61	92990.70	0.9985	20594.21	20743.88	0.9928	55
ZPt_Zinc1jet	495.42	10104.31	10095.62	1.0009	32211.93	32210.34	1.0000	68893.65	69071.54	0.9974	54
ZPt_Zinc2jet	93.77	1413.63	1417.92	0.9970	7481.78	7486.35	0.9994	56179.04	56193.01	0.9998	54
ZAbsRapidity_Zinc1jet	11.00	6464.98	6465.80	0.9999	19396.70	19401.86	0.9997	13522.72	13560.87	0.9972	12
SumZFirstJetRapidity_Zinc1jet	114.20	7091.50	7095.02	0.9995	29925.74	29940.65	0.9995	34896.09	34928.83	0.9991	12
DifZFirstJetRapidity_Zinc1jet	1413.43	7602.20	7606.10	0.9995	46658.05	46685.96	0.9994	80268.04	80331.88	0.9992	12
SumZFirstJetRapidity_Zinc2jet	144.52	1238.68	1240.61	0.9984	6699.69	6700.97	0.9998	56215.54	56223.02	0.9999	12
DifZFirstJetRapidity_Zinc2jet	887.12	1236.71	1237.22	0.9996	7786.77	7787.57	0.9999	56934.69	56936.06	1.0000	12
SumZSecondJetRapidity_Zinc2jet	216.89	1267.75	1270.60	0.9978	6957.67	6959.09	0.9998	55970.49	55971.77	1.0000	12
DifZSecondJetRapidity_Zinc2jet	484.05	1302.56	1304.47	0.9985	8468.94	8471.92	0.9996	56209.67	56214.00	0.9999	12
SumZTwoJetsRapidity_Zinc2jet	155.92	1252.24	1252.55	0.9998	7826.79	7835.92	0.9988	56246.88	56247.68	1.0000	6
DifZTwoJetsRapidity_Zinc2jet	2236.15	1259.21	1259.94	0.9994	8677.82	8693.64	0.9982	57352.72	57364.29	0.9998	6
SumFirstSecondJetRapidity_Zinc2jet	70.61	1370.82	1378.22	0.9946	6710.71	6713.38	0.9996	55944.00	55949.32	0.9999	12
DifFirstSecondJetRapidity_Zinc2jet	232.95	1236.26	1235.93	1.0003	7726.97	7722.12	1.0006	55887.83	55889.36	1.0000	12
DPhiZFirstJet_Zinc1jet	183.95	11807.98	11760.21	1.0041	21699.39	18153.60	1.1953	375066.66	227976.48	1.6452	25
DPhiZFirstJet_Zinc2jet	37.13	1464.68	1440.32	1.0169	6468.33	5762.11	1.1226	57963.09	54509.30	1.0634	25
DPhiZFirstJet_Zinc3jet	17.08	270.64	275.59	0.9820	456.39	404.68	1.1278	37170.18	34287.93	1.0841	25
DPhiZSecondJet_Zinc2jet	2.91	1366.27	1322.10	1.0334	6275.84	6021.54	1.0422	56173.62	53063.71	1.0586	25
DPhiZSecondJet_Zinc3jet	2.83	191.82	197.48	0.9713	447.10	433.89	1.0305	37098.74	34802.85	1.0660	25
DPhiZThirdJet_Zinc3jet	4.48	375.48	373.00	1.0067	485.42	482.38	1.0063	37134.30	34953.13	1.0624	25
DPhiFirstSecondJet_Zinc2jet	7.67	1594.70	1615.98	0.9868	6449.90	5955.90	1.0829	57297.97	54693.91	1.0476	25
DPhiFirstSecondJet_Zinc3jet	9.57	290.93	287.21	1.0130	469.19	449.29	1.0443	37181.31	34839.70	1.0672	25
DPhiFirstThirdJet_Zinc3jet	4.33	254.21	245.40	1.0359	525.47	514.20	1.0219	37198.86	35544.53	1.0465	25
DPhiSecondThirdJet_Zinc3jet	2.94	570.91	574.98	0.9929	566.43	541.27	1.0465	37319.38	35763.04	1.0435	25
Jet1_Pt_Jet1_Y_0_I1	1951.39	3651.10	3642.89	1.0023	6233.12	6088.95	1.0237	7955.97	7966.93	0.9986	15
Jet1_Pt_Jet1_Y_1_I1	2540.24	2043.72	2034.47	1.0045	6649.24	6556.01	1.0142	4763.29	4801.43	0.9921	15
Jet1_Pt_Jet1_Y_2_I1	1981.01	1621.84	1619.58	1.0014	6059.07	5861.58	1.0337	4505.45	4512.06	0.9985	13
Jet1_Pt_Jet1_Y_3_I1	2373.78	2622.40	2616.79	1.0021	4342.90	4160.57	1.0438	3990.50	3968.65	1.0055	12
Jet1_Pt_Jet1_Y_4_I1	2031.51	3311.12	3296.47	1.0044	2668.22	2536.18	1.0521	3380.99	3376.75	1.0013	13
Jet1_Pt_Jet1_Y_5_I1	1169.64	2253.57	2214.36	1.0177	2641.13	2553.63	1.0343	1217.31	1168.82	1.0415	12
Jet1_Y_Z_Y_0_I1	4.32	4094.97	4353.12	0.9407	5066.37	5281.66	0.9592	15566.57	16122.22	0.9655	12
Jet1_Y_Z_Y_1_I1	4.06	3177.02	3428.89	0.9265	3614.27	3813.55	0.9477	10205.06	10407.64	0.9805	12

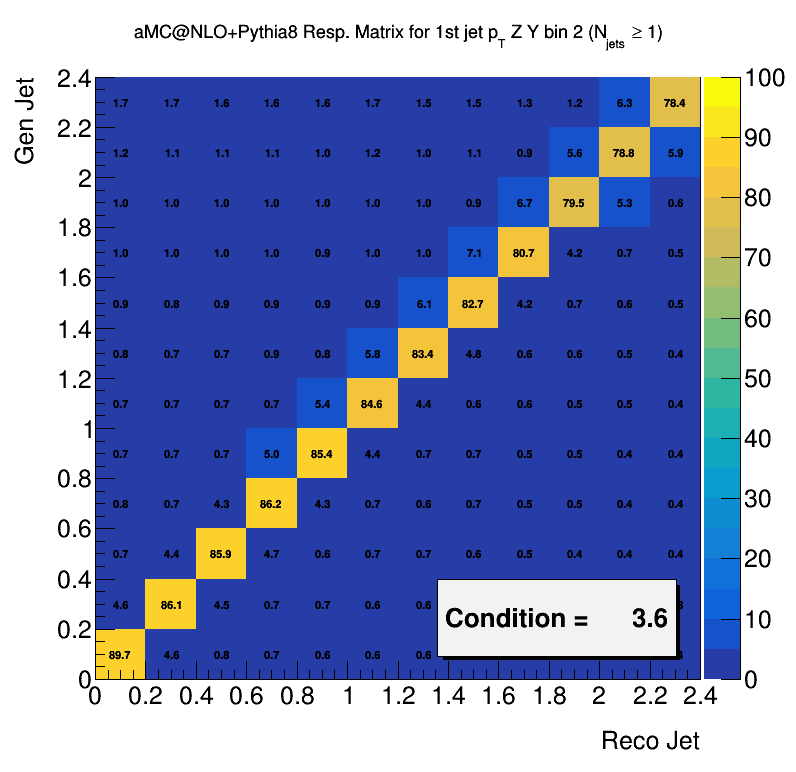

Jet1_Y_Z_Y_2_I1	3.56	2001.80	2215.45	0.9036	3742.79	3865.84	0.9682	4700.36	5002.13	0.9397	12
Jet1_Y_Z_Y_3_I1	3.06	1814.93	1979.33	0.9169	4013.37	4180.23	0.9601	3455.52	3761.18	0.9187	12
Jet1_Y_Z_Y_4_I1	2.55	1504.54	1648.26	0.9128	4103.76	4285.64	0.9576	4613.82	4916.40	0.9385	12
Jet1_Y_Z_Y_5_I1	2.30	398.76	470.83	0.8469	2257.53	2358.15	0.9573	2907.01	3012.34	0.9650	12

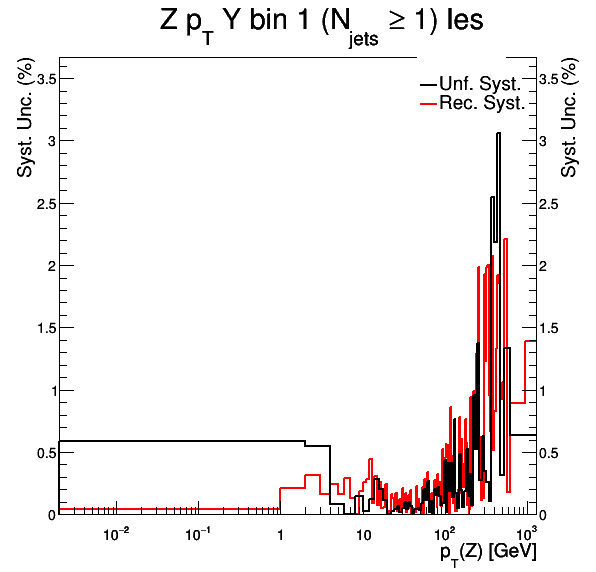

Z_Pt_Z_Y_0_I1	274.54	6119.98	6136.18	0.9974	8489.15	8486.94	1.0003	22781.09	22861.78	0.9965	71
Z_Pt_Z_Y_1_I1	411.68	5831.16	5832.92	0.9997	8610.07	8617.05	0.9992	20301.76	20313.39	0.9994	68
Z_Pt_Z_Y_2_I1	375.26	4300.40	4312.52	0.9972	8828.32	8834.68	0.9993	15805.60	15828.16	0.9986	57
Z_Pt_Z_Y_3_I1	581.48	3659.16	3747.76	0.9764	7041.08	7089.12	0.9932	12567.23	12764.69	0.9845	47
Z_Pt_Z_Y_4_I1	237.21	2716.73	2729.90	0.9952	4337.77	4353.11	0.9965	6988.90	7006.25	0.9975	34
Z_Pt_Z_Y_5_I1	100.32	838.15	843.78	0.9933	1758.48	1762.93	0.9975	1375.34	1395.66	0.9854	20

-->

Electron section

χ²₀ = Nominal χ² in the unfolding

χ²_reg. = χ² for the regularization term in the unfolding

χ²_unf = (Data_unf - Prediction_gen) V^-1_unf (Data_unf - Prediction_gen)

χ²_rec = (Data_reco - Background_reco - Prediction_reco) V^-1_reco (Data_reco - Background_reco - Prediction_reco)

V^-1_unf and V^-1_reco include the data and statistical uncertatinties of their respective spaces. The unfolding uncertainty is also included in V^-1_unf

Electron Channel

Variable	Condition	\Chi^2_{reco}	\Chi^2_{unf}	dof	unf/reco ratio
ZNGoodJets_Zexc	1900878.12	8864.21	3762.55	9	0.42
FirstJetPt_Zinc1jet	16084.97	1974.95	781.91	16	0.40
SecondJetPt_Zinc2jet	2280.96	221.31	129.85	13	0.59
ThirdJetPt_Zinc3jet	676.56	201.73	65.04	8	0.32
FourthJetPt_Zinc4jet	440.95	442.14	18.54	6	0.04
FifthJetPt_Zinc5jet	55.65	393.50	11.30	4	0.03
FirstJetAbsRapidity_Zinc1jet	3.73	993.76	188.71	12	0.19
SecondJetAbsRapidity_Zinc2jet	3.41	142.30	45.98	12	0.32
ThirdJetAbsRapidity_Zinc3jet	3.53	23.83	20.04	12	0.84
FourthJetAbsRapidity_Zinc4jet	3.77	140.27	14.06	12	0.10
FifthJetAbsRapidity_Zinc5jet	3.92	103.26	15.37	12	0.15
JetsHT_Zinc1jet	3587.17	1398.10	714.83	16	0.51
JetsHT_Zinc2jet	576.06	175.62	78.97	15	0.45
JetsHT_Zinc3jet	116.14	38.05	29.13	14	0.77
JetsHT_Zinc4jet	19.08	162.61	22.68	12	0.14
JetsHT_Zinc5jet	7.49	106.47	17.21	11	0.16
JetsMass_Zinc2jet	249.55	269.04	139.96	15	0.52
ZPt_Zinc0jet	11597.63	24377.42	14777.67	55	0.61
ZPt_Zinc1jet	270.52	1665.70	1029.81	54	0.62
ZPt_Zinc2jet	59.80	186.73	78.33	54	0.42
ZAbsRapidity_Zinc1jet	15.30	928.34	227.99	12	0.25
SumZFirstJetRapidity_Zinc1jet	141.18	866.63	34.68	12	0.04
DifZFirstJetRapidity_Zinc1jet	1786.42	1027.15	203.71	12	0.20
SumZFirstJetRapidity_Zinc2jet	184.66	109.51	12.44	12	0.11
DifZFirstJetRapidity_Zinc2jet	1105.52	106.06	6.98	12	0.07
SumZSecondJetRapidity_Zinc2jet	279.33	117.05	12.73	12	0.11
DifZSecondJetRapidity_Zinc2jet	559.63	127.36	23.46	12	0.18
SumZTwoJetsRapidity_Zinc2jet	226.11	102.68	3.18	6	0.03
DifZTwoJetsRapidity_Zinc2jet	3024.18	108.87	9.64	6	0.09
SumFirstSecondJetRapidity_Zinc2jet	70.42	138.53	33.08	12	0.24
DifFirstSecondJetRapidity_Zinc2jet	264.45	128.68	23.54	12	0.18
DPhiZFirstJet_Zinc1jet	236.50	1949.28	717.40	25	0.37
DPhiZFirstJet_Zinc2jet	47.72	160.48	59.91	25	0.37
DPhiZFirstJet_Zinc3jet	19.86	39.64	32.30	25	0.81
DPhiZSecondJet_Zinc2jet	3.37	160.04	54.34	25	0.34
DPhiZSecondJet_Zinc3jet	3.06	30.92	28.11	25	0.91
DPhiZThirdJet_Zinc3jet	4.99	69.81	56.80	25	0.81
DPhiFirstSecondJet_Zinc2jet	7.05	184.66	82.24	25	0.45
DPhiFirstSecondJet_Zinc3jet	9.16	73.31	58.37	25	0.80
DPhiFirstThirdJet_Zinc3jet	4.23	58.26	45.57	25	0.78
DPhiSecondThirdJet_Zinc3jet	2.90	168.44	141.29	25	0.84
Jet1_Pt_Jet1_Y_0_I1	1802.41	625.46	216.51	15	0.35
Jet1_Pt_Jet1_Y_1_I1	2233.24	274.30	152.55	15	0.56
Jet1_Pt_Jet1_Y_2_I1	1333.66	281.39	153.18	13	0.54
Jet1_Pt_Jet1_Y_3_I1	1596.74	339.53	128.28	12	0.38
Jet1_Pt_Jet1_Y_4_I1	1779.63	387.26	111.71	13	0.29
Jet1_Pt_Jet1_Y_5_I1	1026.13	253.32	93.04	12	0.37
Jet1_Y_Z_Y_0_I1	4.38	564.90	94.24	12	0.17
Jet1_Y_Z_Y_1_I1	4.06	533.64	67.67	12	0.13
Jet1_Y_Z_Y_2_I1	3.64	468.23	78.66	12	0.17
Jet1_Y_Z_Y_3_I1	3.07	184.93	68.81	12	0.37
Jet1_Y_Z_Y_4_I1	2.59	105.28	64.13	12	0.61
Jet1_Y_Z_Y_5_I1	2.32	24.03	14.96	12	0.62
Z_Pt_Z_Y_0_I1	231.87	1128.04	685.75	71	0.61
Z_Pt_Z_Y_1_I1	375.91	1073.37	608.95	68	0.57
Z_Pt_Z_Y_2_I1	242.05	872.68	582.95	57	0.67
Z_Pt_Z_Y_3_I1	433.02	490.00	366.17	47	0.75
Z_Pt_Z_Y_4_I1	156.44	311.98	235.79	34	0.76
Z_Pt_Z_Y_5_I1	62.93	158.06	145.57	20	0.92

Muon section
Unfolding is done without regularization.

χ²₀ = Nominal χ² in the unfolding

χ²_reg. = χ² for the regularization term in the unfolding

χ²_unf = (Data_unf - Prediction_gen) V^-1_unf (Data_unf - Prediction_gen)

χ²_rec = (Data_reco - Background_reco - Folded Prediction_unf) V^-1_reco (Data_reco - Background_reco - Folded Prediction_unf)

V^-1_unf and V^-1_reco include the data statistical uncertatinties of their respective spaces.

Muon Channel

Variable	Condition	MG_NLO chi2 REC	MG_NLO chi2 UNF	MG_NLO ratio	MG_LO chi2 REC	MG_LO chi2 UNF	MG_LO ratio	GENEVA chi2 REC	GENECA chi2 UNF	GENEVA ratio	dof
ZNGoodJets_Zexc	897056.32	22908.30	22908.30	1.0000	48471.94	48471.94	1.0000	131978.97	131978.97	1.0000	9
FirstJetPt_Zinc1jet	15446.46	14549.79	14469.23	1.0056	32629.33	32089.13	1.0168	24345.74	24256.96	1.0037	16
SecondJetPt_Zinc2jet	2915.02	1952.36	1906.66	1.0240	12442.51	12400.47	1.0034	94904.80	94164.38	1.0079	13
ThirdJetPt_Zinc3jet	660.37	274.67	254.94	1.0774	2928.77	2954.92	0.9911	84042.76	83580.38	1.0055	8
FourthJetPt_Zinc4jet	347.40	759.29	757.33	1.0026	588.62	588.85	0.9996	27990.36	27896.23	1.0034	6
FifthJetPt_Zinc5jet	49.88	638.76	639.25	0.9992	167.15	167.46	0.9982	8096.36	8085.81	1.0013	4
FirstJetAbsRapidity_Zinc1jet	3.61	7274.88	7308.65	0.9954	19274.11	19307.16	0.9983	12265.80	12309.05	0.9965	12
SecondJetAbsRapidity_Zinc2jet	3.35	1311.43	1318.19	0.9949	6144.60	6152.43	0.9987	55865.41	55869.39	0.9999	12
ThirdJetAbsRapidity_Zinc3jet	3.38	223.17	228.77	0.9755	404.32	408.20	0.9905	37756.42	37761.84	0.9999	12
FourthJetAbsRapidity_Zinc4jet	3.96	199.46	202.14	0.9867	68.09	70.56	0.9650	9905.86	9907.38	0.9998	12
FifthJetAbsRapidity_Zinc5jet	3.89	170.75	176.52	0.9673	21.83	28.14	0.7760	2401.63	2402.38	0.9997	12
JetsHT_Zinc1jet	3399.52	8771.46	8718.16	1.0061	30120.99	29308.67	1.0277	51436.95	51710.54	0.9947	16
JetsHT_Zinc2jet	571.24	1467.95	1494.09	0.9825	7940.13	7965.38	0.9968	61056.47	60812.86	1.0040	15
JetsHT_Zinc3jet	105.38	230.48	234.45	0.9831	580.45	592.04	0.9804	37092.15	37035.88	1.0015	14
JetsHT_Zinc4jet	19.01	355.59	351.24	1.0124	172.04	167.67	1.0261	9713.99	9665.37	1.0050	12
JetsHT_Zinc5jet	6.32	190.53	194.04	0.9819	45.98	49.54	0.9281	2345.95	2333.15	1.0055	11
JetsMass_Zinc2jet	261.01	1543.26	1511.00	1.0214	8747.92	8744.62	1.0004	56301.79	56135.32	1.0030	15
ZPt_Zinc0jet	8672.81	80066.55	80292.65	0.9972	92852.61	92989.93	0.9985	20594.21	20743.00	0.9928	55
ZPt_Zinc1jet	495.42	10104.31	10096.55	1.0008	32211.93	32210.40	1.0000	68893.65	69069.52	0.9975	54
ZPt_Zinc2jet	93.77	1413.63	1408.35	1.0038	7481.78	7481.48	1.0000	56179.04	56183.23	0.9999	54
ZAbsRapidity_Zinc1jet	11.00	6464.98	6465.40	0.9999	19396.70	19397.03	1.0000	13522.72	13524.85	0.9998	12
SumZFirstJetRapidity_Zinc1jet	114.20	7091.50	7094.99	0.9995	29925.74	29939.83	0.9995	34896.09	34924.83	0.9992	12
DifZFirstJetRapidity_Zinc1jet	1413.43	7602.20	7605.82	0.9995	46658.05	46679.58	0.9995	80268.04	80313.98	0.9994	12
SumZFirstJetRapidity_Zinc2jet	144.52	1238.68	1238.06	1.0005	6699.69	6700.47	0.9999	56215.54	56215.75	1.0000	12
DifZFirstJetRapidity_Zinc2jet	887.12	1236.71	1236.83	0.9999	7786.77	7785.28	1.0002	56934.69	56934.96	1.0000	12
SumZSecondJetRapidity_Zinc2jet	216.89	1267.75	1267.68	1.0001	6957.67	6959.10	0.9998	55970.49	55970.89	1.0000	12
DifZSecondJetRapidity_Zinc2jet	484.05	1302.56	1302.03	1.0004	8468.94	8468.23	1.0001	56209.67	56210.43	1.0000	12
SumZTwoJetsRapidity_Zinc2jet	155.92	1252.24	1252.58	0.9997	7826.79	7835.98	0.9988	56246.88	56247.98	1.0000	6
DifZTwoJetsRapidity_Zinc2jet	2236.15	1259.21	1259.76	0.9996	8677.82	8693.09	0.9982	57352.72	57363.78	0.9998	6
SumFirstSecondJetRapidity_Zinc2jet	70.61	1370.82	1372.66	0.9987	6710.71	6712.64	0.9997	55944.00	55945.02	1.0000	12
DifFirstSecondJetRapidity_Zinc2jet	232.95	1236.26	1235.52	1.0006	7726.97	7720.41	1.0008	55887.83	55887.57	1.0000	12
DPhiZFirstJet_Zinc1jet	183.95	11807.98	11765.76	1.0036	21699.39	18151.66	1.1954	375066.66	227633.48	1.6477	25
DPhiZFirstJet_Zinc2jet	37.13	1464.68	1440.00	1.0171	6468.33	5760.65	1.1228	57963.09	54503.95	1.0635	25
DPhiZFirstJet_Zinc3jet	17.08	270.64	275.52	0.9823	456.39	404.21	1.1291	37170.18	34287.23	1.0841	25
DPhiZSecondJet_Zinc2jet	2.91	1366.27	1320.64	1.0345	6275.84	6019.79	1.0425	56173.62	53049.79	1.0589	25
DPhiZSecondJet_Zinc3jet	2.83	191.82	196.54	0.9760	447.10	431.90	1.0352	37098.74	34801.40	1.0660	25
DPhiZThirdJet_Zinc3jet	4.48	375.48	370.90	1.0123	485.42	481.87	1.0074	37134.30	34949.46	1.0625	25
DPhiFirstSecondJet_Zinc2jet	7.67	1594.70	1613.26	0.9885	6449.90	5954.07	1.0833	57297.97	54680.06	1.0479	25
DPhiFirstSecondJet_Zinc3jet	9.57	290.93	287.13	1.0132	469.19	449.09	1.0448	37181.31	34839.00	1.0672	25
DPhiFirstThirdJet_Zinc3jet	4.33	254.21	244.71	1.0388	525.47	513.21	1.0239	37198.86	35544.33	1.0465	25
DPhiSecondThirdJet_Zinc3jet	2.94	570.91	576.26	0.9907	566.43	542.01	1.0450	37319.38	35762.49	1.0435	25
Jet1_Pt_Jet1_Y_0_I1	1951.39	3651.10	3615.52	1.0098	6233.12	6104.00	1.0212	7955.97	7934.93	1.0027	15
Jet1_Pt_Jet1_Y_1_I1	2540.24	2043.72	2022.44	1.0105	6649.24	6577.22	1.0110	4763.29	4793.54	0.9937	15
Jet1_Pt_Jet1_Y_2_I1	1981.01	1621.84	1602.69	1.0119	6059.07	5878.70	1.0307	4505.45	4492.10	1.0030	13
Jet1_Pt_Jet1_Y_3_I1	2373.78	2622.40	2606.98	1.0059	4342.90	4180.11	1.0389	3990.50	3961.75	1.0073	12
Jet1_Pt_Jet1_Y_4_I1	2031.51	3311.12	3274.17	1.0113	2668.22	2560.31	1.0421	3380.99	3352.99	1.0084	13
Jet1_Pt_Jet1_Y_5_I1	1169.64	2253.57	2204.03	1.0225	2641.13	2560.59	1.0315	1217.31	1162.04	1.0476	12
Jet1_Y_Z_Y_0_I1	4.32	4094.97	4353.12	0.9407	5066.37	5281.66	0.9592	15566.57	16122.22	0.9655	12
Jet1_Y_Z_Y_1_I1	4.06	3177.02	3428.89	0.9265	3614.27	3813.55	0.9477	10205.06	10407.64	0.9805	12
Jet1_Y_Z_Y_2_I1	3.56	2001.80	2215.45	0.9036	3742.79	3865.84	0.9682	4700.36	5002.13	0.9397	12
Jet1_Y_Z_Y_3_I1	3.06	1814.93	1979.33	0.9169	4013.37	4180.23	0.9601	3455.52	3761.18	0.9187	12
Jet1_Y_Z_Y_4_I1	2.55	1504.54	1648.26	0.9128	4103.76	4285.64	0.9576	4613.82	4916.40	0.9385	12
Jet1_Y_Z_Y_5_I1	2.30	398.76	470.83	0.8469	2257.53	2358.15	0.9573	2907.01	3012.34	0.9650	12
Z_Pt_Z_Y_0_I1	274.54	6119.98	6129.56	0.9984	8489.15	8478.88	1.0012	22781.09	22842.23	0.9973	71
Z_Pt_Z_Y_1_I1	411.68	5831.16	5812.60	1.0032	8610.07	8600.19	1.0011	20301.76	20283.34	1.0009	68
Z_Pt_Z_Y_2_I1	375.26	4300.40	4305.19	0.9989	8828.32	8833.19	0.9994	15805.60	15816.39	0.9993	57
Z_Pt_Z_Y_3_I1	581.48	3659.16	3739.67	0.9785	7041.08	7087.35	0.9935	12567.23	12724.09	0.9877	47
Z_Pt_Z_Y_4_I1	237.21	2716.73	2731.25	0.9947	4337.77	4354.79	0.9961	6988.90	6997.28	0.9988	34
Z_Pt_Z_Y_5_I1	100.32	838.15	842.53	0.9948	1758.48	1764.05	0.9968	1375.34	1389.33	0.9899	20

Electron section Unfolding is done without regularization.

χ²₀ = Nominal χ² in the unfolding

χ²_reg. = χ² for the regularization term in the unfolding

χ²_unf = (Data_unf - Prediction_gen) V^-1_unf (Data_unf - Prediction_gen)

χ²_rec = (Data_reco - Background_reco - Prediction_reco) V^-1_reco (Data_reco - Background_reco - Prediction_reco)

V^-1_unf and V^-1_reco include the data and statistical uncertatinties of their respective spaces.**

**The unfolding uncertainty is omitted in these checks.

Electron Channel

Variable	Condition	\chi^2_{reco}	\chi^2_{unf}	dof	unf/reco ratio
ZNGoodJets_Zexc	1607297.08	8853.49	6777.62	9	0.77
FirstJetPt_Zinc1jet	16264.95	1981.45	1545.80	16	0.78
SecondJetPt_Zinc2jet	2281.13	219.68	161.45	13	0.73
ThirdJetPt_Zinc3jet	678.15	192.39	132.89	8	0.69
FourthJetPt_Zinc4jet	444.01	462.72	249.49	6	0.54
FifthJetPt_Zinc5jet	56.09	398.22	151.96	4	0.38
FirstJetAbsRapidity_Zinc1jet	3.73	986.80	794.66	12	0.81
SecondJetAbsRapidity_Zinc2jet	3.41	145.14	120.95	12	0.83
ThirdJetAbsRapidity_Zinc3jet	3.53	24.59	21.45	12	0.87
FourthJetAbsRapidity_Zinc4jet	3.76	141.16	80.91	12	0.57
FifthJetAbsRapidity_Zinc5jet	3.90	106.70	42.70	12	0.40
JetsHT_Zinc1jet	3564.89	1387.57	1214.31	16	0.88
JetsHT_Zinc2jet	575.11	175.97	134.34	15	0.76
JetsHT_Zinc3jet	117.15	36.20	28.07	14	0.78
JetsHT_Zinc4jet	18.98	164.72	70.69	12	0.43
JetsHT_Zinc5jet	7.22	111.03	34.89	11	0.31
JetsMass_Zinc2jet	250.17	268.95	207.43	15	0.77
ZPt_Zinc0jet	11597.63	24377.42	17875.09	55	0.73
ZPt_Zinc1jet	270.54	1654.98	1467.14	54	0.89
ZPt_Zinc2jet	59.80	186.10	166.13	54	0.89
ZAbsRapidity_Zinc1jet	15.30	923.78	749.66	12	0.81
SumZFirstJetRapidity_Zinc1jet	141.20	859.59	655.30	12	0.76
DifZFirstJetRapidity_Zinc1jet	1789.71	1021.00	809.24	12	0.79
SumZFirstJetRapidity_Zinc2jet	185.78	110.13	84.80	12	0.77
DifZFirstJetRapidity_Zinc2jet	1104.71	105.96	79.63	12	0.75
SumZSecondJetRapidity_Zinc2jet	278.07	119.23	90.56	12	0.76
DifZSecondJetRapidity_Zinc2jet	554.42	129.46	98.61	12	0.76
SumZTwoJetsRapidity_Zinc2jet	226.29	103.73	76.78	6	0.74
DifZTwoJetsRapidity_Zinc2jet	2988.69	110.11	83.15	6	0.76
SumFirstSecondJetRapidity_Zinc2jet	70.71	139.06	106.46	12	0.77
DifFirstSecondJetRapidity_Zinc2jet	264.33	128.02	98.28	12	0.77
DPhiZFirstJet_Zinc1jet	236.19	1944.47	1598.37	25	0.82
DPhiZFirstJet_Zinc2jet	47.67	161.10	129.23	25	0.80
DPhiZFirstJet_Zinc3jet	19.82	39.13	32.51	25	0.83
DPhiZSecondJet_Zinc2jet	3.37	162.43	132.15	25	0.81
DPhiZSecondJet_Zinc3jet	3.07	30.41	27.19	25	0.89
DPhiZThirdJet_Zinc3jet	4.99	69.63	56.77	25	0.82
DPhiFirstSecondJet_Zinc2jet	7.05	184.06	146.47	25	0.80
DPhiFirstSecondJet_Zinc3jet	9.17	73.78	59.33	25	0.80
DPhiFirstThirdJet_Zinc3jet	4.22	55.34	44.32	25	0.80
DPhiSecondThirdJet_Zinc3jet	2.90	166.97	142.07	25	0.85
Jet1_Pt_Jet1_Y_0_I1	1798.72	632.57	504.96	15	0.80
Jet1_Pt_Jet1_Y_1_I1	2260.80	276.43	222.40	15	0.80
Jet1_Pt_Jet1_Y_2_I1	1332.44	280.14	219.99	13	0.79
Jet1_Pt_Jet1_Y_3_I1	1595.39	341.81	285.53	12	0.84
Jet1_Pt_Jet1_Y_4_I1	1773.34	390.21	284.79	13	0.73
Jet1_Pt_Jet1_Y_5_I1	1024.98	245.85	158.20	12	0.64
Jet1_Y_Z_Y_0_I1	4.38	565.62	495.49	12	0.88
Jet1_Y_Z_Y_1_I1	4.06	556.95	472.48	12	0.85
Jet1_Y_Z_Y_2_I1	3.64	465.67	373.47	12	0.80
Jet1_Y_Z_Y_3_I1	3.07	181.66	141.34	12	0.78
Jet1_Y_Z_Y_4_I1	2.59	108.44	82.55	12	0.76
Jet1_Y_Z_Y_5_I1	2.32	22.54	16.99	12	0.75
Z_Pt_Z_Y_0_I1	231.90	1132.14	995.94	71	0.88
Z_Pt_Z_Y_1_I1	376.02	1088.60	952.28	68	0.87
Z_Pt_Z_Y_2_I1	243.16	856.87	744.99	57	0.87
Z_Pt_Z_Y_3_I1	432.97	495.29	415.60	47	0.84
Z_Pt_Z_Y_4_I1	156.47	314.18	250.02	34	0.80
Z_Pt_Z_Y_5_I1	63.01	158.38	141.82	20	0.90

Muon section

Reco = Reconstruction data with background and fakes subtracted

Fold Unf. = Unfolded data refolded by the response matrix and multiplied by the efficiency and lumi

Muon Channel

Electron section

Reco = Reconstruction data with background and fakes subtracted

Fold Unf. = Unfolded data refolded by the response matrix and multiplied by the efficiency and lumi

Electron Channel

Muon section

Reco = Reconstruction MC with fakes subtracted

Gen = Gen MC multiplied by the efficiency and int lumi

Muon Channel

Electron section

Reco = Reconstruction MC with fakes subtracted

Gen = Gen MC multiplied by the efficiency and int lumi

Electron Channel

Reco = re-binned reconstruction data (to match the gen binning) with background and fakes subtracted

Unf = Unfolded data multiplied by efficiency and int lumi

Muon Channel

Electron Channel

Reco = re-binned reconstruction data (to match the gen binning) with background and fakes subtracted

Unf = Unfolded data multiplied by efficiency and int lumi

Reco = re-binned reconstruction data (to match the gen binning) with background and fakes subtracted

Unf = Unfolded data multiplied by efficiency and int lumi

Muon Channel

Reco = re-binned reconstruction data (to match the gen binning) with background and fakes subtracted

Unf = Unfolded data multiplied by efficiency and int lumi

Electron Channel

Uncertainty estimated from up and down variations at reconstruction level.

Muon Channel

Uncertainty estimated from up and down variations at reconstruction level.

Electron Channel

Muon Channel

Electron Channel

Comparison of eras B-F and G-H to check effects of the HIP problem.

Muon Channel

Comparison of eras B-F and G-H to check effects of the HIP problem.

Electron Channel

Comparison of eras B-F and G-H to check effects of the HIP problem. BF on the left, GH on the right.

Muon Channel

Comparison of eras B-F and G-H to check effects of the HIP problem. BF on the left, GH on the right.

Electron Channel

Comparison of eras B-F and G-H to check effects of the HIP problem. BF on the left, GH on the right. Medium2016 ID is used instead of medium: validFraction cut move from 0.8 to 0.49
